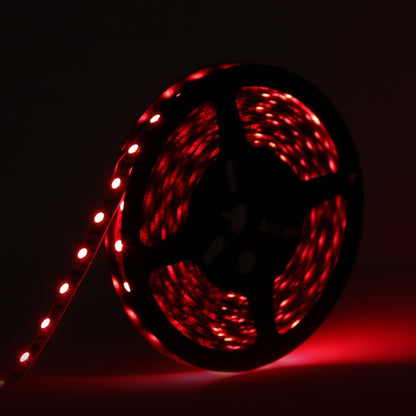

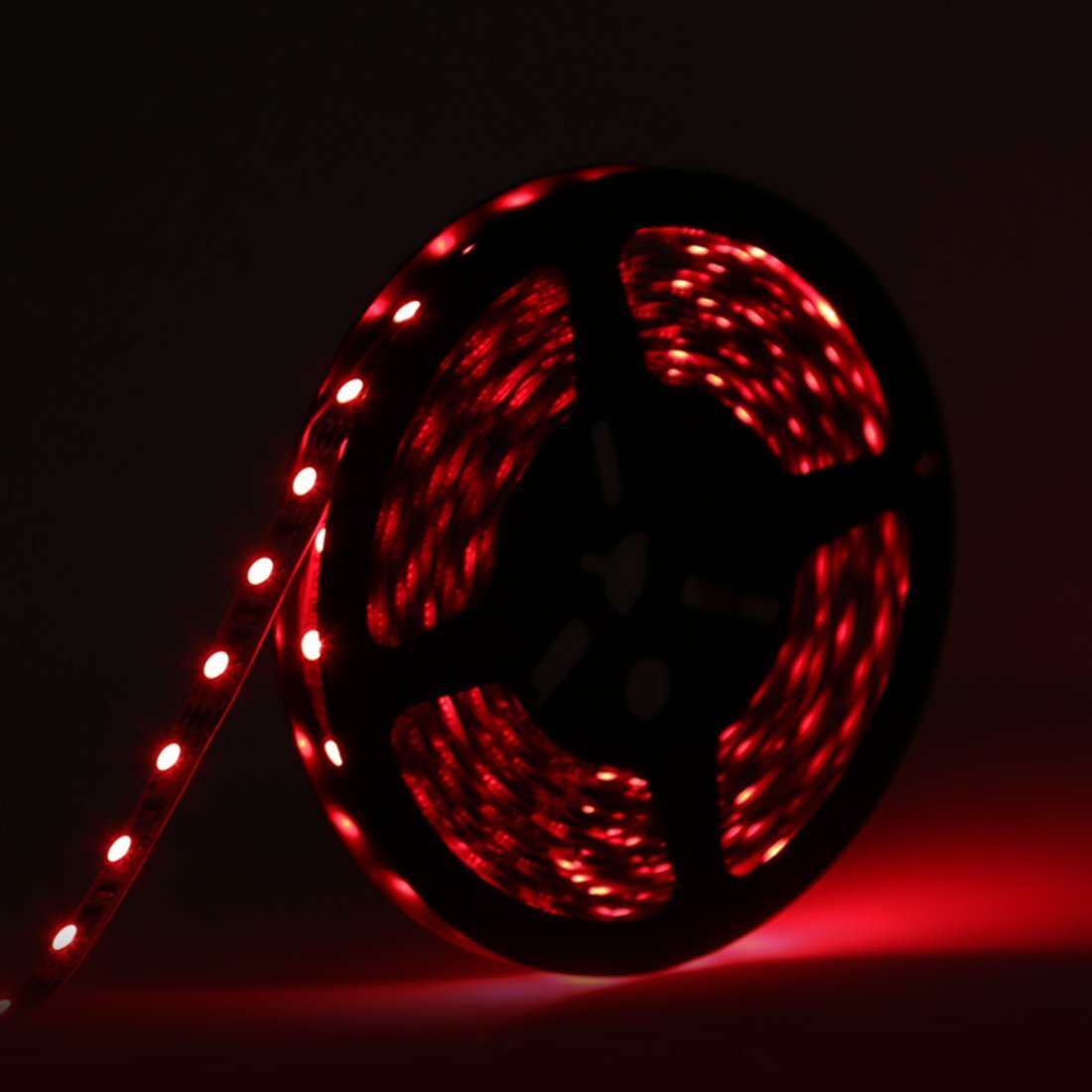

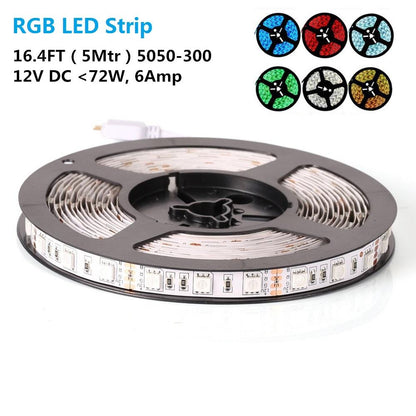

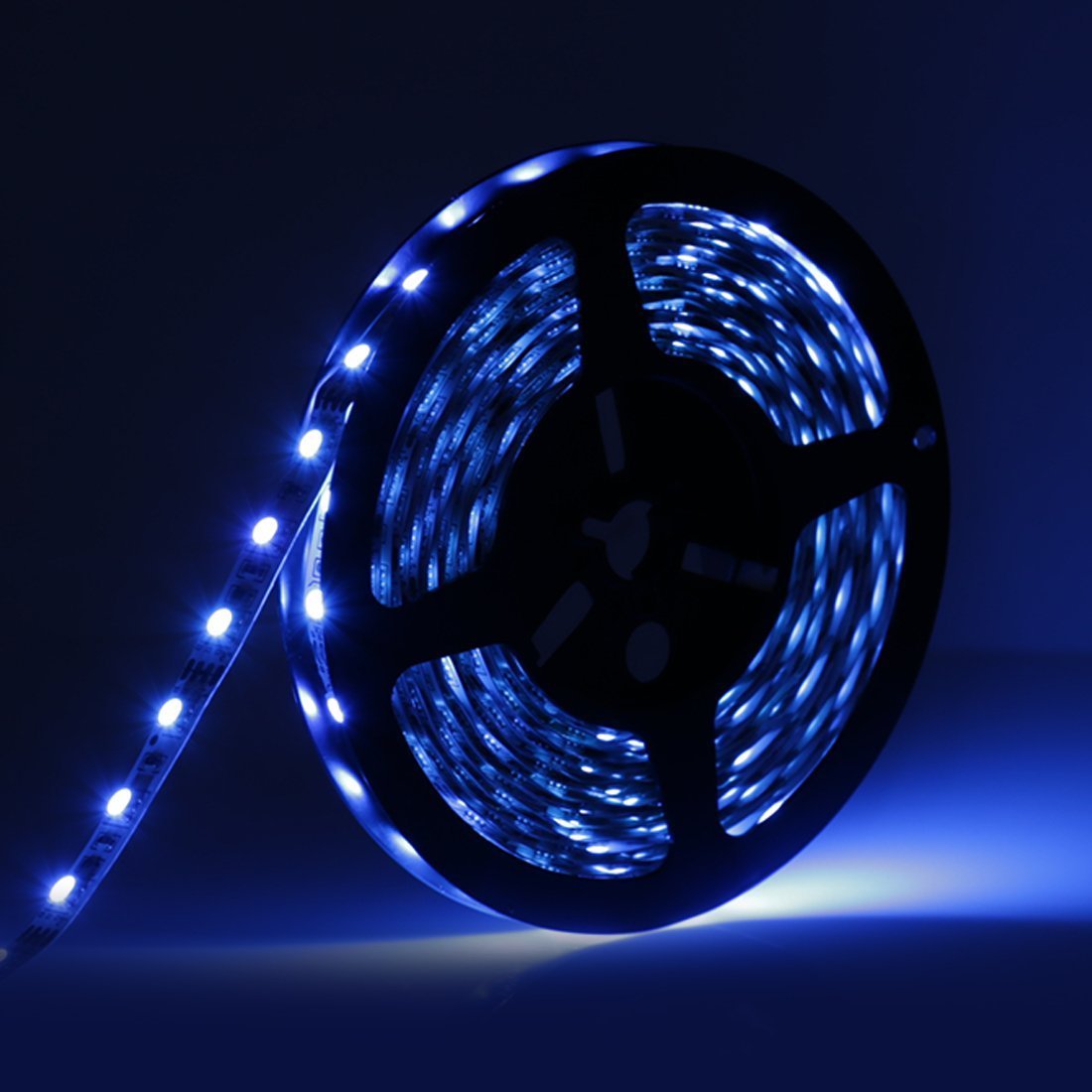

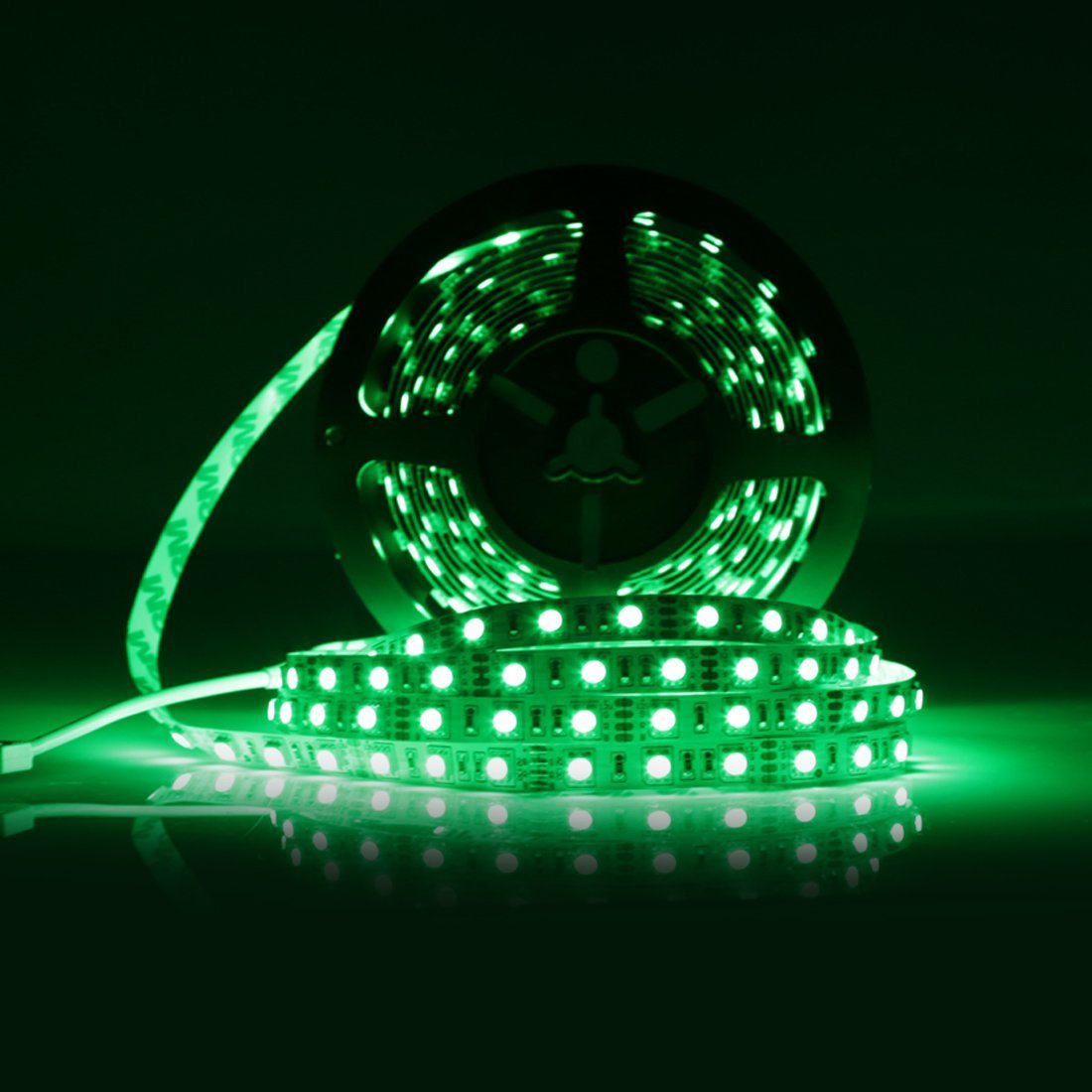

SMD5050-300 RGB Color Changing High Density Tri-ChipFlexible LED Strips 60 LEDs Per Meter 10mm Width
SMD5050-300 RGB Color Changing High Density Tri-ChipFlexible LED Strips 60 LEDs Per Meter 10mm Width
*Length: SMD5050-300LED per 16.4FT(5Mtr)
*Power: 12VDC <72W 6Amp
*12V DC operating, need to work with 12V transformer if run to wall oulet (non included)
*IP Protection:Non-Waterproof, Waterproof IP65, IP67 and IP68 available
*Control: Need to work with matched RGB controller(non included)
*Easy Installation: With 3M double-sided adhesive tape back, very sticky that fit for various mounting materials
| Technical Specification |
| Code | HK-F5050X30-X |
| Size(W*H/mm) | 10*2 |
| Length Available | 50cm,100cm,200cm,300cm,400cm,500cm |
| Voltage | 12VDC |
| Power | 14.4W/Meter |
| Lumen Output | 300lm/Feet @ Pure White |
| Available color | Pure White, Warm White, Natural White,Red,Green,Yellow, Blue, RGB |
| CCT | 2700-6500K |
| Beam Angle | 120° |
| PCB Background | Yellow, White, Black |
| Wiring | One end solder with 20cm lead wire |
| Accessory | Double Sided Adhesive Backing for IP20 and IP65, Mounting Bracket Comes for IP67 and IP68, 2pcs each Meter. |
| Dim Type | PWM dimmable |
| Waterproof Type | IP20, IP65, IP67, IP68 |
| Other Features |
| Item | RGB Color Changing 12VDC < 72W, 6Amp SMD5050 300 LED flexible strip, 5meter per roll |
| Weight | 0.15kgs/roll for non-waterproof; 0.25kgs/roll for IP65/IP67; 0.5kgs/roll for IP68. |
| PCB Backing | Adhesive backing for Non-waterproof and waterproof IP65,extra rubber mounting clips provide for IP67 and IP68 (2pcs every meter). |
| Lead | Single color strip has two contacts(V+,V-) and is Polarity Sensitive. |
| Pre-wiring | 20cm(8'') Red-Black lead wire is pre-soldered at one end of the strip |
Package included:
• 1x 5meter per roll LED Flexible Strip
Applications:
• Widely used for home, hotels, clubs, shopping malls
• Architectural decorative lighting, boutique atmosphere lighting
• Extensively applied in backlighting, concealed lighting, advertisement lighting box edge lighting
• Emergency & security lighting, advertisement sign lighting
• Holiday, event, show exhibition decoration
• Auditorium walk stairway lighting, Hidden groove, Wine cabinet Decor
• Amusement park, theater and aircraft cabin mood lighting
• Applicable for automobile, boat and bicycle decoration
Waterproof Strip Dimension
*Non-waterproof : Bare Strip, with self-adhesive backing, for indoor or dry location use.
*Waterproof IP65 : Strip Surface is covered on top with Gel, and with self-adhesive backing. IP65 grade can protect sprayed water from all direction.
*Waterproof IP67: The bare strip is put in a hollow silicone tube and sealed at two ends. IP67 grade can shortly immersed in water.
*Waterproof IP68: The bare strip is put in a U Shape silicone tube, then covered on top with silicon gel, and sealed at two ends, which make it's solid.IP68 grade can be used under water.
